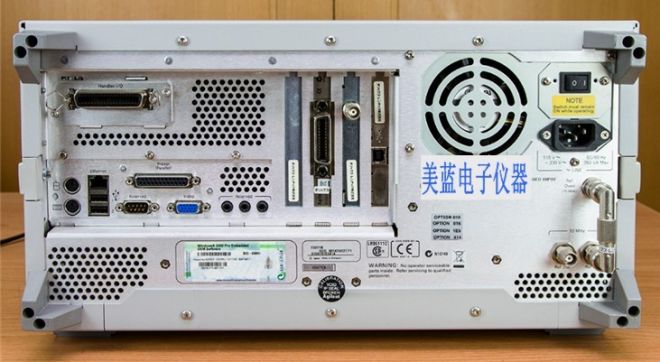

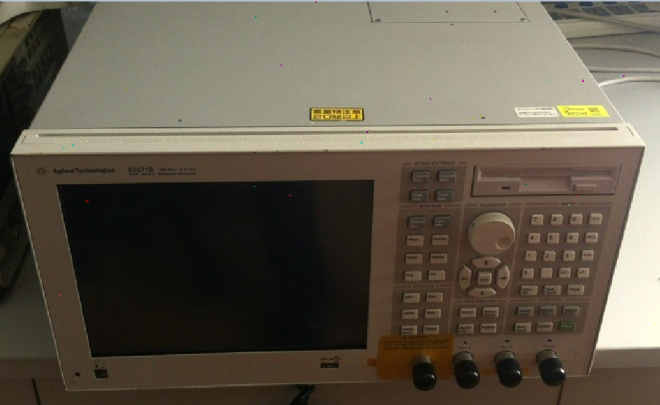

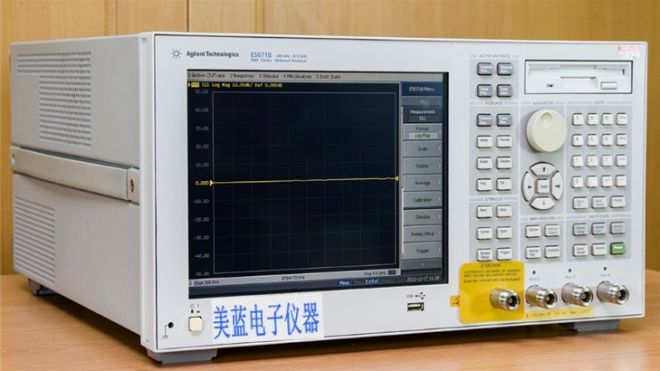

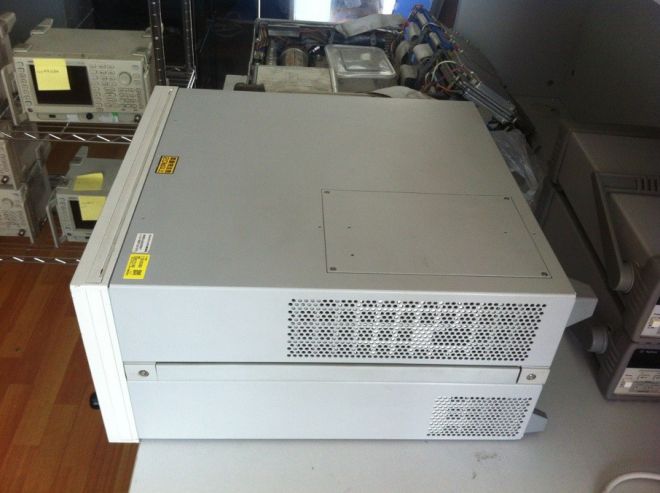

儀器名稱: Agilent E5071B-485 4-port Test Set---電話18912657535 儀器型號: Agilent E5071B-485 4-port 儀器品牌: Agilent 儀器指標: E5071B-485 4-port? ?300 kHz to 8.5 GHz
E5071B ENA RF Network Analyzer, 300 kHz to 8.5 GHz
Key Features & Specifications
- 125 dB dynamic range at test port (typical)
- 9.6 us/point sweep speed
- 0.001 dB rms trace noise
- Integrated 2-, 3- and 4-ports with balanced measurements
- Fixture embedding/de-embedding and port characteristic impedance conversion
- Frequency-offset mode for frequency translated devices.
- Built-in Visual Basic for Applications (VBA)
- Measurement Wizard Assistant (MWA) software
The E5071B network analyzer offers fast and accurate measurements for RF components. The advanced architecture minimizes the number of sweeps to complete a multiport measurement and further improves test throughput.
Discontinuance Notice: The E5070B/71B has been discontinued as of Oct. 1, 2007 and end of support life will be Oct. 1, 2012. The E5071C is the replacement product. For more detail please visit here.
View: ENA Series Video DemosDiscuss calibration, applications, programming topics: Network Analyzer Discussion Forum
Choose accessories: Network Analyzer Accessories
Agilent
ENA 2, 3 and 4 Port
RF Network Analyzers
E5070B 300 kHz to 3 GHz
E5071B 300 kHz to 8.5 GHz
E5091A Multiport Test Set
E5092A Configurable Multiport Test Set
Ordering information
E5070B 300 kHz to 3 GHz network analyzer
E5071B 300 kHz to 8.5 GHz network analyzer
Option E5070B/71B-008 Frequency-offset mode
Option E5070B/71B-010 Time domain analysis capability
Option E5070B/71B-790 Measurement wizard assistant software
Option E5070B/71B-214 Two-port S-parameter test set
Option E5070B/71B-314 Three-port S-parameter test set
Option E5070B/71B-414 Four-port S-parameter test set
Option E5070B/71B-016 Touch screen color LCD
Option E5070B/71B-1E5 High stability frequency reference
E5091A Multiport test set
Option E5091A-009 9-port test set
Max port output power -50 to 10 dBm
Test set S-parameter test set
Number of test ports 2 3 4
Measurement parameters S11 – S22 S11 – S33 S11 – S44
with balanced conversion Mixed mode S-parameter,
amplitude/phase imbalance
IFBW 10 Hz to 100 kHz (1, 1.5, 2, 3, 4, 5, 7 step)
Number of points 2 to 20,0011
System dynamic range2 120 dB at 10 Hz BW (3 MHz to 1.5 GHz)
122 dB at 10 Hz BW (1.5 GHz to 3 GHz)
121 dB at 10 Hz BW (3 GHz to 4 GHz)
117 dB at 10 Hz BW (4 GHz to 6 GHz)
112 dB at 10 Hz BW (6 GHz to 7.5 GHz)
105 dB at 10 Hz BW (7.5 GHz to 8.5 GHz)
(Response & isolation calibration)
Trace noise (magnitude) 0.001 dBrms at 3 kHz BW (3 MHz to 3 GHz)
0.0012 dBrms at 3 kHz BW (3 GHz to 4.25 GHz)
0.0036 dBrms at 3 kHz BW (4.25 GHz to 7.5 GHz)
0.006 dBrms at 3 kHz BW (7.5 GHz to 8.5 GHz)
(0 dBm source power, through measurement)
Option E5091A-016 13/16-port configurable test set
